PRéSENTATIONS - AMPLIS/BAFFLES - AMPEG PRO NEO SERIES, SVT PRO SERIES AU MUSIK MESSE 2010



MUSIK MESSE 2010 - AMPEG - Pro Neo Series - SVT Pro Series - http://www.ampeg.com/
REDACTEUR : JACQUES CARBONNEAUX - INDEX DES VIDEOS MUSIK MESSE 2010

PN-410HLF
PN-210HLF
PN-115HLF

* 4 x 10″ custom US-made Eminence LF drivers
* 850 watts RMS power handling @ 8 ohms
* 1″ Eminence APT:50 HF driver w/L-Pad level control
* Frequency response: 45Hz – 18kHz
* Max SPL: 127dB
* Sensitivity: 98dB
* Weight: 64 lbs

* 2 x 10″ custom US-made Eminence LF drivers
* 550 watts RMS power handling @ 8 ohms
* 1″ Eminence APT:50 HF driver w/L-Pad level control
* Frequency response: 45Hz – 18kHz
* Max SPL: 125dB
* Sensitivity: 98dB
* Weight: 44 lbs

* 15″ custom US-made Eminence LF driver
* 575 watts RMS power handling @ 8 ohms
* 1″ Eminence APT:50 HF driver w/L-Pad level control
* Frequency response: 35Hz – 18kHz
* Max SPL: 128dB
* Sensitivity: 98dB
* Weight: 59 lbs

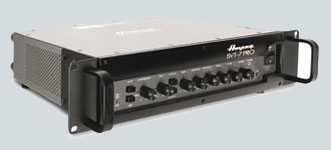

SVT-7PRO

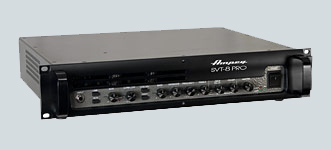

SVT-8PRO

• RMS power output:
• 1000 watts @ 4 ohms
• 600 watts @ 8 ohms
• Preamp: Tube ( 1 × JJ 12AX7)
• Power amp: Class D
• Tone controls: Bass, mid, treble
• Mid-tone control: 5-position
• Ultra low/high boosts
• Onboard variable compressor
• Transformer balanced line out
• Includes removable rack ears
• Power supply: Switching
• Weight: 15.5 lbs / 7 kg

Preamp: Tube (2 x 12AX7, 1 x 12AU7)
Power Amp: Solid-State
RMS Power Output: 2500-Watts @ 2 ohms
RMS Power Output: 1300-Watts @ 4 ohms
RMS Power Output: 800-Watts @ 8 ohms
Tone Controls: Bass, Mid, Treble
Mid Tone Control: 5-Position
Ultra Low/High: Yes - 5-Position Ultra Low
Balanced Line Out: Yes (Transformer)
Effects Loop: Yes
Preamp Out/Power Amp In: Yes
Other: Power Amp Emulation Circuit, Mute Button
Dimensions (W x H x D inches): 19 x 3.5 x 14
Weight: 23 pounds


AMPEG - Pro Neo Series - SVT Pro Series
MUSIK MESSE 2010
